| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.059 in/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

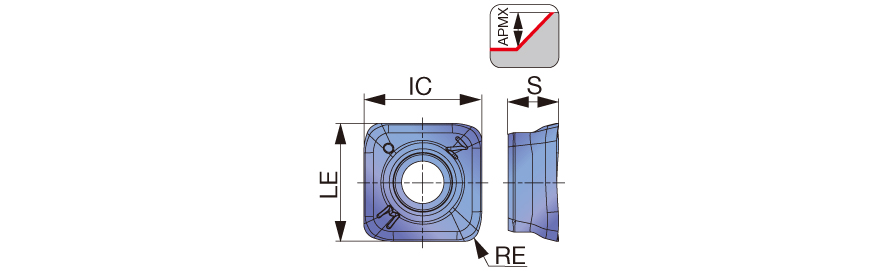

| Corner Radius (RE) | 0.0787″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.098″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Width (W1) | 0.63″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.63″ | Cutting Edge Effective Length (LE) | 0.63″ |
| Insert Thickness (S) | 0.268″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | AH8015 |

Product Features

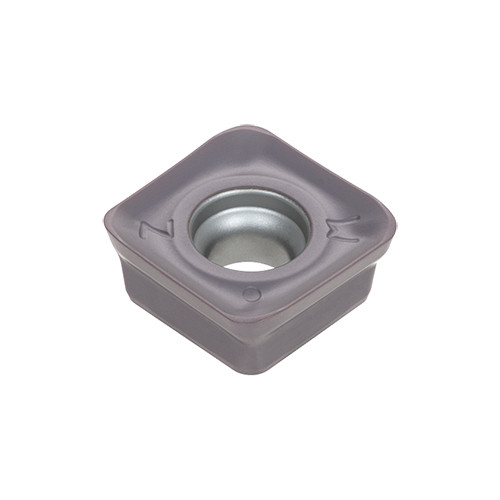

| Family Description | Single-sided square insert with MM chipbreaker for general purpose use | Country of Origin | Japan |
