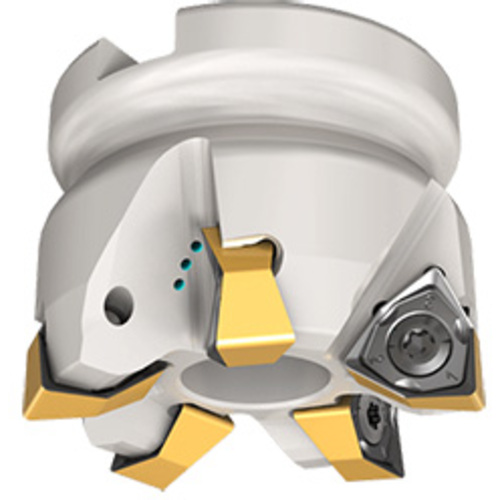

H690 FWND2.0-05-.75R07JHP
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1-3/4″ OAL × 0.275″ LOC ; 5 Inserts

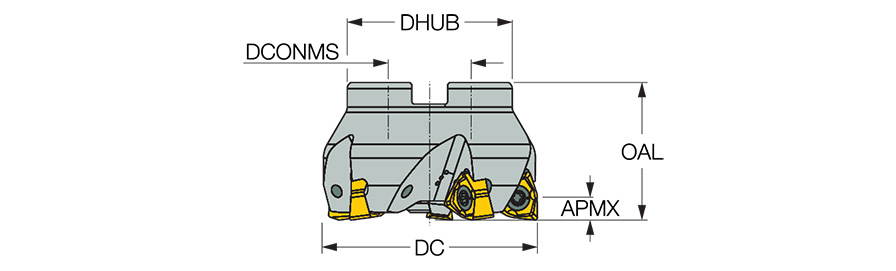

| Cutting Diameter (DC/DCX) | 2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2″ | Master Insert Identification (MIID) | H690 WNMU 0705PNN-MM |
| Cutting Item Count (CICT) | 5 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.275″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.81″ | Tool Type | 90° Facemills |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
568
