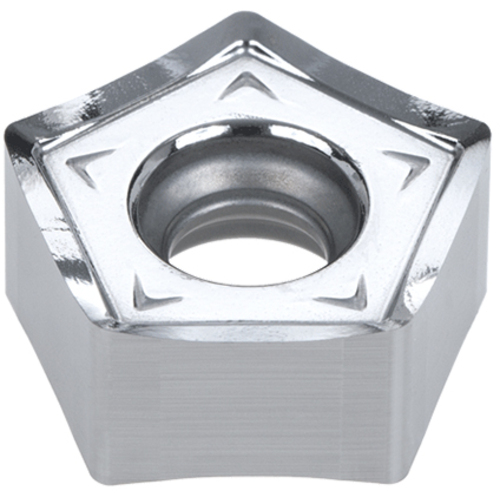

PNCU0905GNFN-AJ DS2005

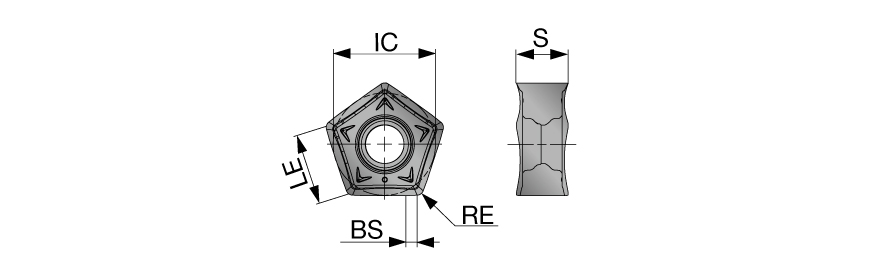

| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.252″ | Number of Cutting Edges | 10 |
| Inscribed Circle Diameter (IC) | 0.48″ | Cutting Edge Effective Length (LE) | 0.35″ |
| Insert Thickness (S) | 0.243″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ | Body Material | Carbide |
| Grade | DS2005 |
Product Features
| Family Description | For non-ferrous metal machining. Neutral geometry, Double-sided pentagonal insert. Can be used on Right and Left hand cutters. | Country of Origin | Japan |
