| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH8015 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0118 in/tooth |
| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.433″ | Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Inscribed Circle Diameter (IC) | 3/8″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.277″ | Cutting Edge Effective Length (LE) | 0.472″ |
| Wiper Edge Length (BS) | 0.046″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features

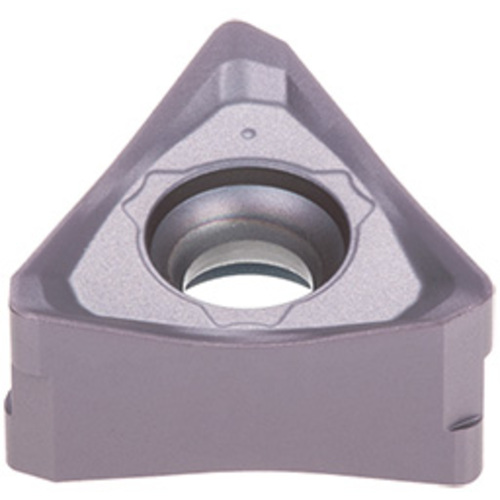

| Family Description | Double-sided triangle insert with 6 edges and MJ chipbreaker | Country of Origin | Japan |
