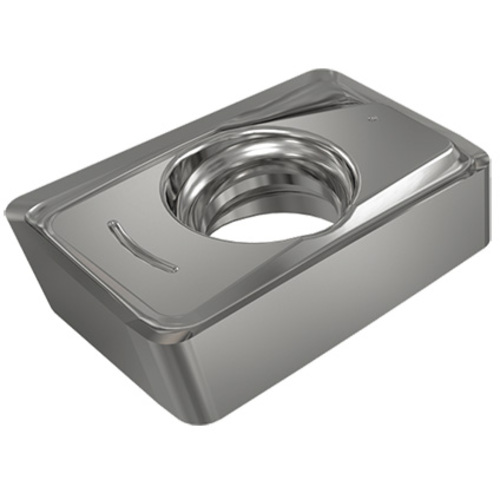

MDR ANHU 120408FR-P IC08
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Cutting Edge Material | Carbide |

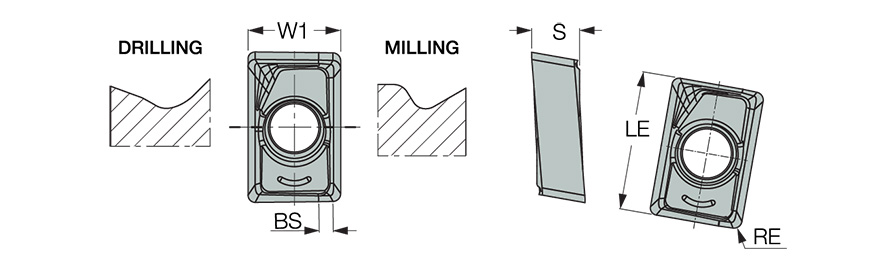

| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.295″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.152″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.032″ | Cutting Edge Effective Length (LE) | 0.488″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IC08 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
Product Features
| Family Description | Inserts with sharp cutting edge and polished rake face for ISO N applications (for machining non-ferrous materials) | Country of Origin | Israel |
Shipping Info
Package Weight
1
