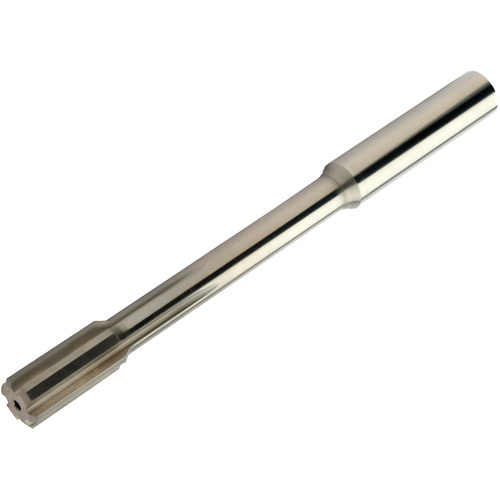

435.B-0800-A1-XF H10F COROREAMER 435
Chucking Reamer; 8 mm Dia. × 8 mm Shank Dia. × 100 mm OAL × 20.8 mm LCF ; 6 FL ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Coating | Uncoated |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Usable Length (LU) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Flute Type | Straight |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 100 mm | Length Chip Flute (LCF) | 20.8 mm |
| Cutting Direction (HAND) | Right Hand | Point Length (PL) | H7 |
| Flute Helix Angle (FHA) | 0 Degrees|CW|CCW | Decimal Equivalent | 0.315″ |
| Grade | H10F |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.134
