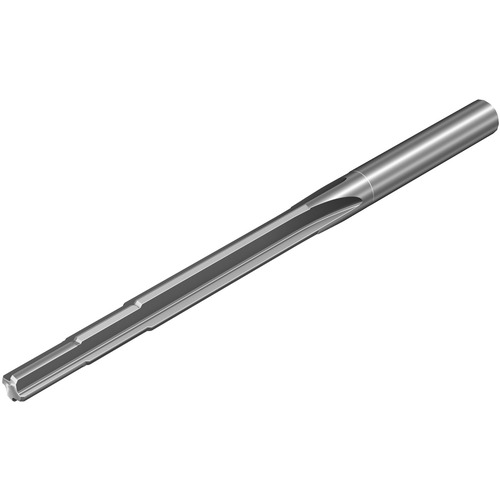

452.R-0417-032A0-CM H10F CORODRILL 452
Chucking Reamer; 4.168 mm Dia. × 4.17 mm Shank Dia. × 101.6 mm OAL × 55.9 mm LCF ; 4 FL ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4.168 mm | Grade | H10F |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Usable Length (LU) | 50.8 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 4.17 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Flute Type | Straight |
| Overall Length (OAL) | 101.6 mm | Coolant Supply Property (CSP) | External |
| Cutting Direction (HAND) | Right Hand | Length Chip Flute (LCF) | 55.9 mm |
| Flute Helix Angle (FHA) | 0 Degrees|CW|CCW | Decimal Equivalent | 0.1641″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.044
