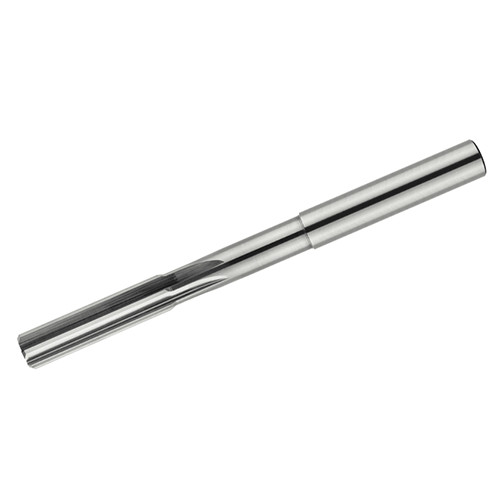

RM-FCR-0600-H7S-CS-C IC07
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Cutting Edge Material | Carbide |

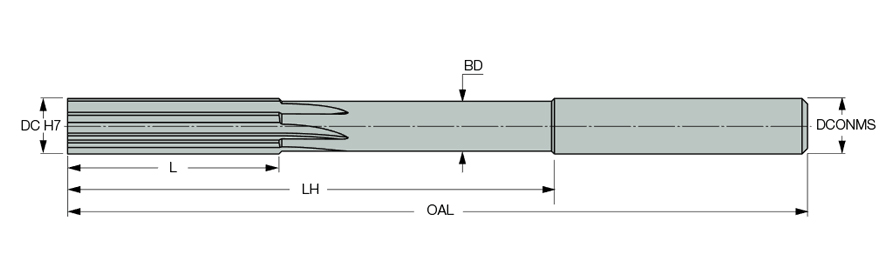

| Cutting Edge Length (L) | 26 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5.6 mm | Flute Type | Straight |
| Overall Length (OAL) | 93 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees | Decimal Equivalent | .5640 |
| Grade | IC07 |
Product Features
| Family Description | DIN 212C solid carbide reamers with straight flutes and a cylindrical shank for blind holes | Country of Origin | Italy |
| Remarks | Hole tolerance: H7 manufacturing tolerance according to DIN1420 Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated Special diameters are available on request |
Shipping Info
Package Weight
0.437
