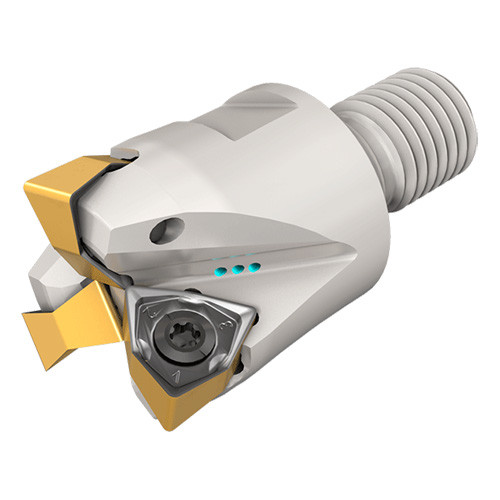

H690 EWN D032-03M16R07JHP
Indexable End Mill; 32 mm Dia. × 7 mm LOC × 29 mm Shank Dia. × 60 mm OAL

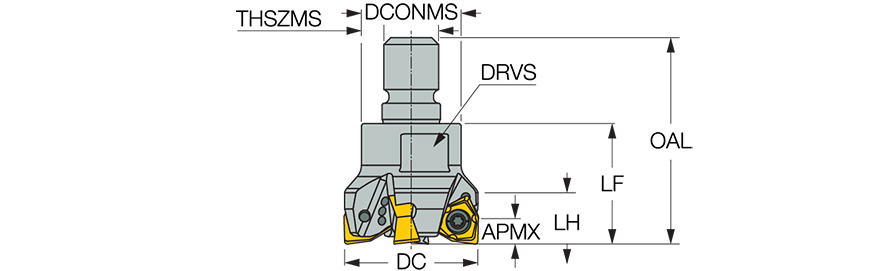

| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 14 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 35 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 7 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Overall Length (OAL) | 60 mm | Drive Size (DRVS) | 25 mm |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 29 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 0705PNN-MM |
Product Features
| Family Description | 90° JHP Endmills with a FLEXFIT threaded adaptation and pinpointed coolant outlets carrying H690 WNMU 0705 double-sided trigonal inserts | Country of Origin | Israel |
| Remarks | When mounting cutters with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned Apply appropriate tightening torque to eliminate a gap between the mating faces Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
251
