TXN06R400U0150A06NLF2.5

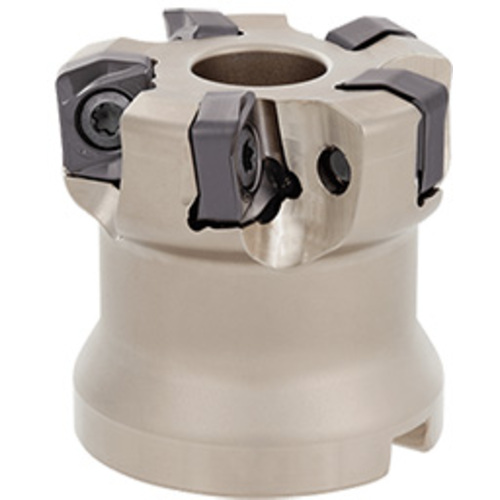

Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 0.059″ LOC ; 6 Inserts

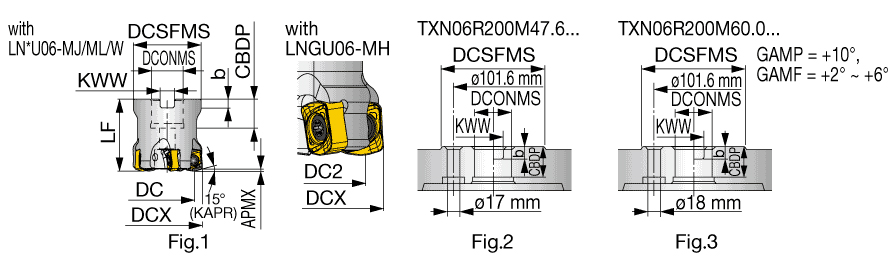

| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | LNMU06X5ZER-MJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 0.059″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | Fast Feed Endmill |
Product Features
| Family Description | Super high feed milling cutters with double sided inserts with 4 edges | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
Related Documentation
The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DC above 100 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
