TEN09R400U0150A05NLF2.5

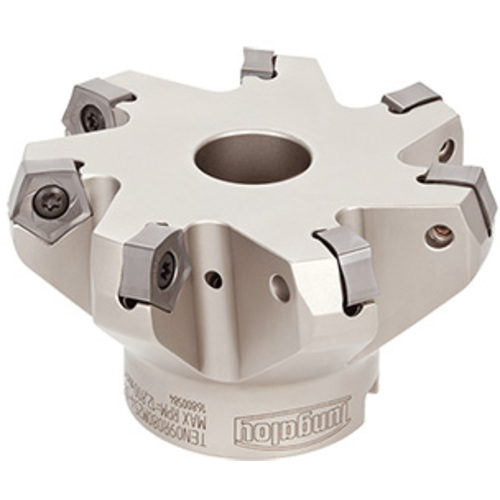

Indexable Face Mill; 4.24″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 1/4″ LOC ; 5 Inserts

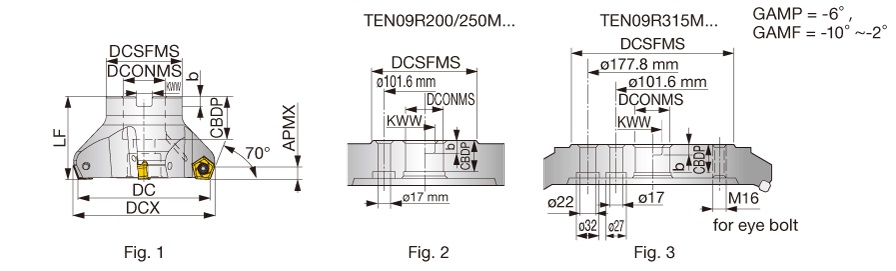

| Cutting Diameter (DC/DCX) | 4.24″ | Master Insert Identification (MIID) | PNMU0905GNEN-MJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4.227″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 1/4″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | 75 Facemills |
Product Features
| Family Description | 70deg face mills with double sided pentagonal inserts. | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. Please select neutral inserts PN*U0905GNEN ** when using a left hand cutter. |
