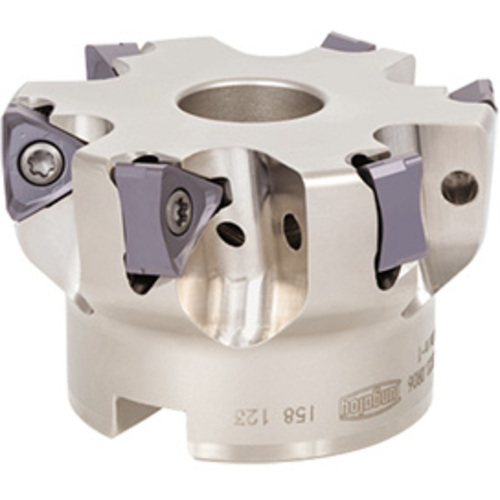

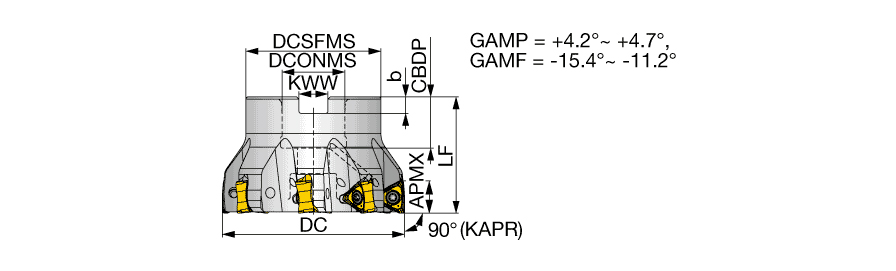

TPTN12U4.00B1.50R10NLF2.5
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2.48″ OAL × 0.433″ LOC ; 10 Inserts
| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | TNMU120708PER-MJ |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.433″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Functional Length (LF) | 2.48″ |
| Overall Length (OAL) | 2.48″ | Tool Type | CUTTER - BORE TYPE |
Product Features
| Family Description | Square Shoulder milling cutters with double-sided triangle insert; Bore Type | Country of Origin | Japan |
| Remarks | Subtract 0.1 mm (R1.6) or 0.23 mm (R2) to LH and LF measurements when R1.6 or R2 insert is used. |
