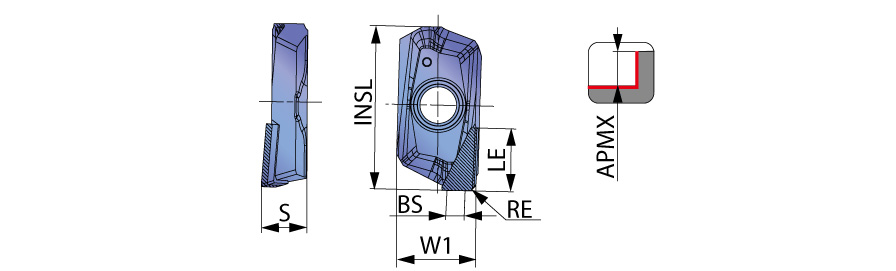

AVGW120404PDFR-D DX160
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Shoulder Milling | | Grade | DX160 |
| Insert Length (INSL) | 0.524″ | Cutting Edge Material | PCD |
| Corner Radius (RE) | 0.0157″ | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 0.177″ | Cutting Edge Effective Length (LE) | 0.197″ |
| Insert Width (W1) | 0.26″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.146″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.079″ |
Product Features
| Family Description | PCD insert. High efficiency. High precision. | Country of Origin | Japan |
| Remarks | These inserts are not compatible with ramping, plunging and helical interpolation application. |
