SCD 032-024-060 PXC05 IC908

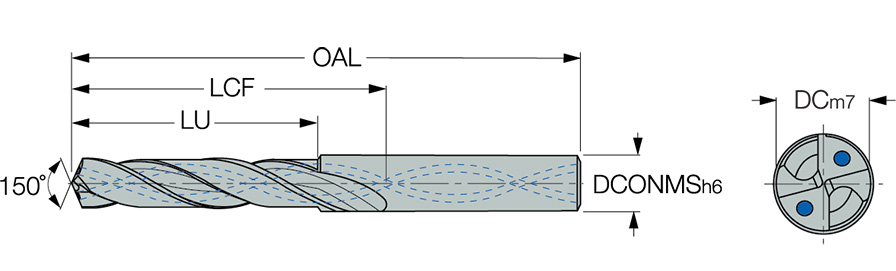

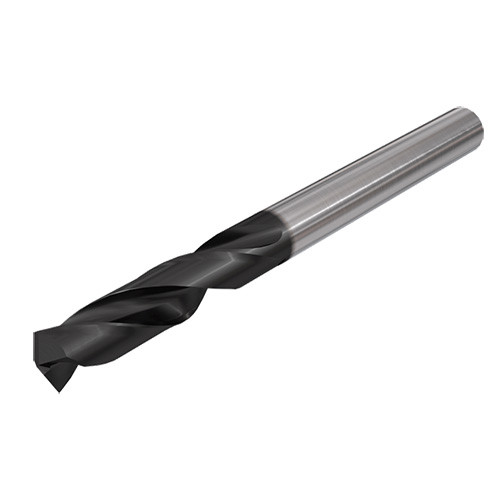

SC Drill; 3.2 mm Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 3.2 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.126″ | Grade | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.2 mm | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 24 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 28 mm |
| Application | | Drilling | | Overall Length (OAL) | 66 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with coolant holes. Point angle 150DEG. Drilling depth 5xD | Country of Origin | USA |
