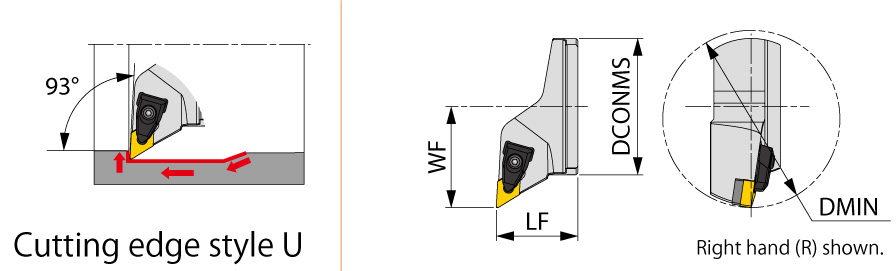

| Functional Length (LF) | 1.811″ | Master Insert Identification (MIID) | DNMG150608 |
| Functional Width (WF) | 2.244″ | Application | | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 3.031″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 3.937″ | Tool Type | Internal Indexble -Turn Tool |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

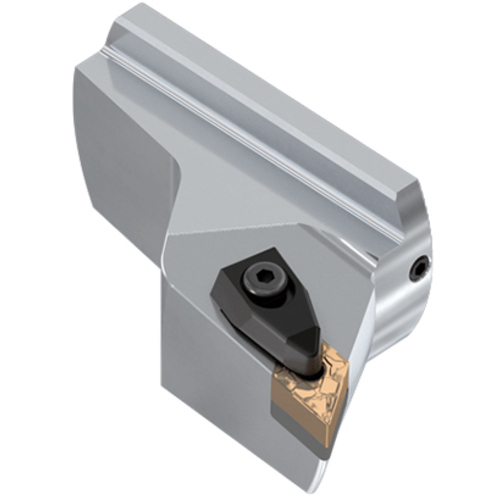

| Family Description | Double-clamp exchangeable boring head, for negative 55deg/45deg rhombic inserts | Country of Origin | China |
| Remarks | DN**/FN**1504... inserts require a separate shim (# RDT443). When using a right or left hand insert, the right hand insert (R) is used ftoolholders (DDUNR... type). (DDUNL... type), and the left hand insert (L) is used for the right hand |
