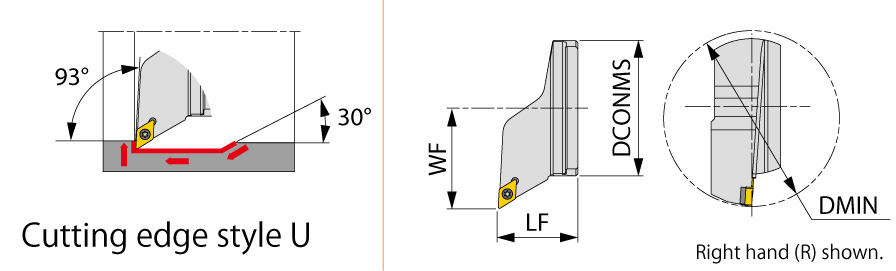

| Functional Length (LF) | 1.772″ | Master Insert Identification (MIID) | DCMT11T308 |
| Functional Width (WF) | 2.244″ | Application | | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 3.031″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 3.937″ | Tool Type | Internal Indexble -Turn Tool |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

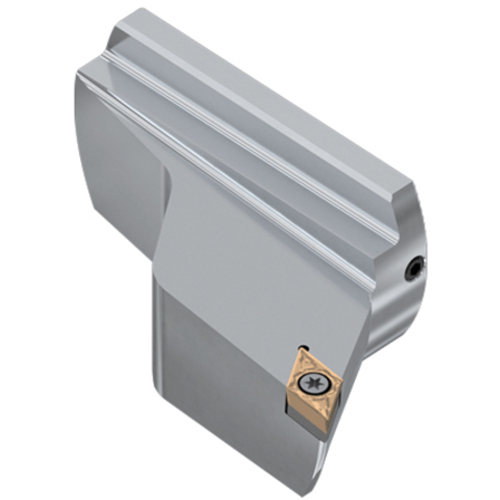

| Family Description | Screw-on clamp exchangeable boring head, for positive 55deg rhombic inserts | Country of Origin | CHINA |
| Remarks | Use right hand toolholders (SDUCR...) with left hand inserts (L); and left hand toolholders (SDUCL...) with right hand inserts (R). |
