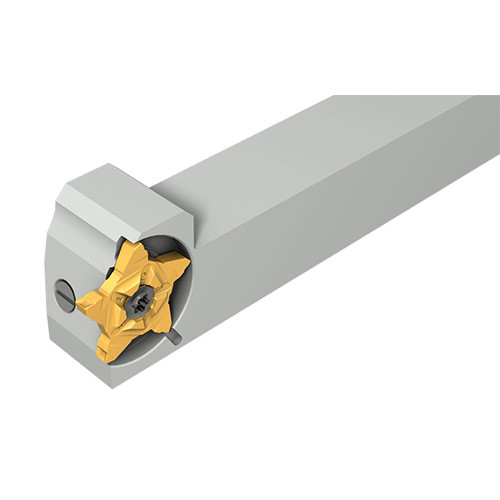

PCHL 25-24-QC
Grooving Toolholder ; 5.315″ OAL ; 0.984″ Shank Height ; 0.984″ Shank Width ; 0.02″ CW Min. ; 1/8″ CW Max. ; 0.252″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.02″ | Head Length (LH) | 0.925″ |
| Cutting Width Maximum (CWX) | 1/8″ | Overall Length (OAL) | 5.315″ |
| Cutting Depth Maximum (CDX) | 0.252″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Height (H) | 0.984″ | Body Material | Steel |
| Shank Width (B) | 0.984″ | Measurement Type | Inch |
| Functional Width (WF) | 0.925″ |
Product Features
| Family Description | Grooving, parting, and recessing tools with safety lock clamping for five cutting-edged pentagonal-shaped inserts. SAFE-T-LOCK clamping mechanism with superior insert stability for fast and precise indexing | Country of Origin | Israel |
Shipping Info
Package Weight
689
