SCD0156-1220 0236 PXC05 IC908

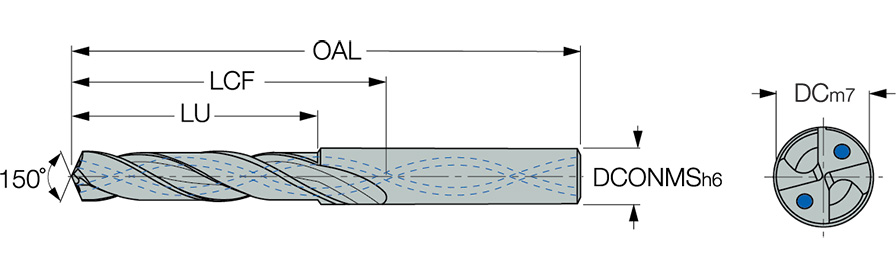

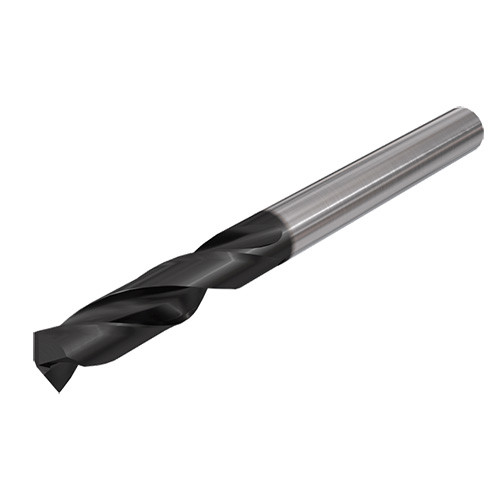

SC Drill; 0.156″ Dia. × 0.236″ Shank Dia. × 2.913″ OAL × 1.42″ LCF ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.156″ | Grade | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.156″ | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 1.2205″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 1.42″ |
| Application | | Drilling | | Overall Length (OAL) | 2.913″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills |
Product Features
| Family Description | Solid carbide drills with coolant holes. Point angle 150DEG. Drilling depth 5xD | Country of Origin | USA |
