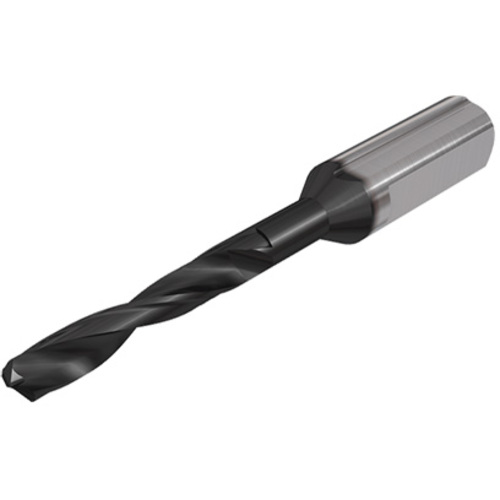

SCD0204-0778-0236-PICCO3D IC908
SC Drill; 0.204″ Dia. × 0.236″ Shank Dia. × 1.811″ OAL × 1.14″ LCF ; 3xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.204″ | Shank Type | w |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.204″ | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Usable Length (LU) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Length Chip Flute (LCF) | 1.14″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 1.811″ |
| Point Length (PL) | 0.0315″ | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 0.591″ | Body Material | Carbide |
Product Features
| Family Description | Solid carbide drills for Swiss and small CNC machines. Part of the PASSPORT system | Country of Origin | Israel |
Shipping Info
Package Weight
59
