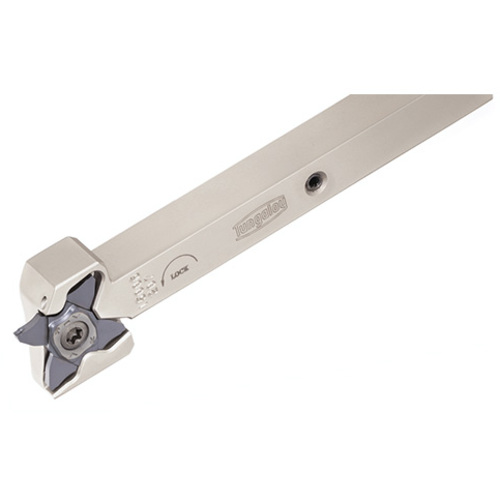

STCR1616-27-CHP
Grooving Toolholder ; 16 mm Shank Height ; 16 mm Shank Width ; 0.5 mm CW Min. ; 3.18 mm CW Max. ; 6.4 mm Max Depth ; Right Hand ; Steel

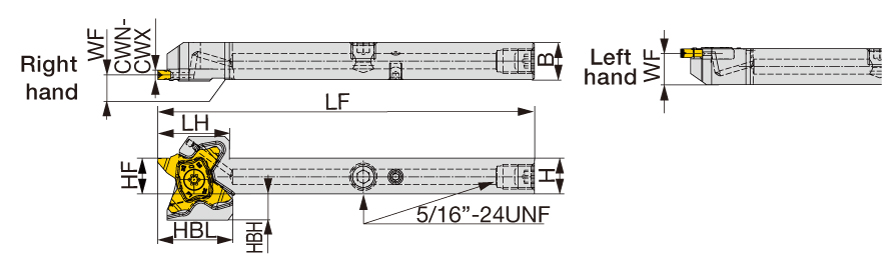

| Cutting Width Minimum (CWN) | 0.5 mm | Head Length (LH) | 23 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 6.4 mm | Application | | External grooving | |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 120 mm |
Product Features
| Family Description | Precision external grooving tool with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | Japan |
| Remarks | Make sure to avoid tool interferences when used on Swiss machines. Torque: Recommended torque (Nm) for clamping |
