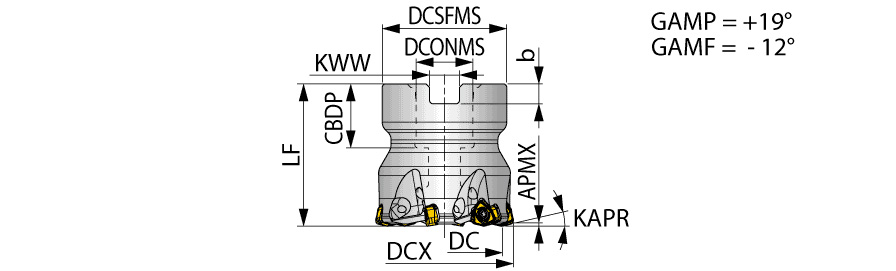

TXWX06U2.50B0.75R07
Indexable Face Mill; 2-1/2″ Dia. × 3/4″ Shank Dia. × 1.968″ OAL × 0.059″ LOC ; 7 Inserts
| Cutting Diameter (DC/DCX) | 2-1/2″ | Master Insert Identification (MIID) | WXMU0605ZER-MM |
| Cutting Diameter (DC) | 2.0512″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 0.059″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.968″ |
| Overall Length (OAL) | 1.968″ | Tool Type | Fast Feed Face mill |
Product Features
| Family Description | High feed milling cutter for 6-corner double sided inserts | Country of Origin | Japan |
Shipping Info
Package Weight
0
