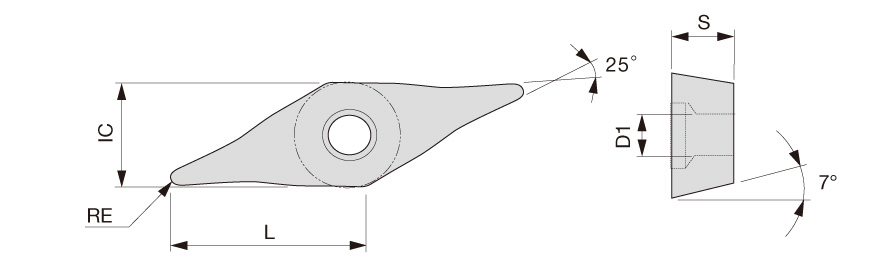

YCGT100201MF-JS SH7025
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0197″ |
| Corner Radius (RE) | 0.0039″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.398″ | Min. Turning Feed (ft(min)) | 0.0008 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 0.167″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Neutral |
| Coating | TiAlN+TiCN | Chip Breaker Type | YPro Posi-JS |
| Grade | SH7025 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.098″ | Body Material | Carbide |
Product Features
| Family Description | Positive 7deg relief ang., G class, 25deg rhombic insert, for finish turning | Country of Origin | Japan |
