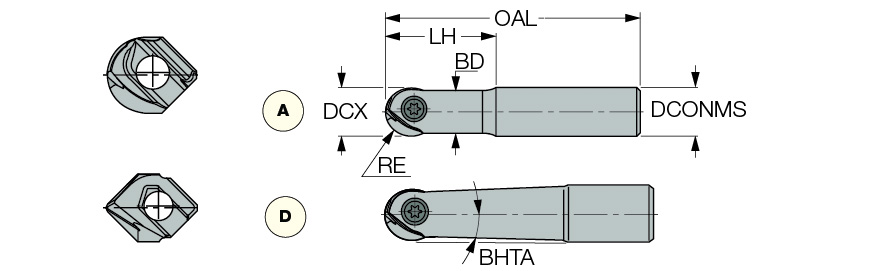

HCM D30/32-A-L200-C32
| Cutting Diameter (DC/DCX) | 30 mm | Torque (TQ) | 12 Nxm |
| Cutting Diameter (DC) | 30 mm | Body Diameter (BD) | 27 mm |
| Overall Length (OAL) | 200 mm | Corner Radius (RE) | 16 mm |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Countersinking | Drill Mill | Profiling | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Front Type | A |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HCR D300-QF | Measurement Type | Metric |
| Head Length (LH) | 100 mm | Body Material | Steel |
| Tool Type | Ball nose endmills | Cutting Diameter Maximum (DCX) | 30 mm |
| Flute Count (NOF) | 2 |
Product Features
| Family Description | Ball nose multifunction endmills D=30/32 mm (BALLPLUS). Each tool can carry various milling insert geometries. | Country of Origin | Israel |
| Remarks | The dimensions are for HBR inserts |
Shipping Info
Package Weight
2.467
