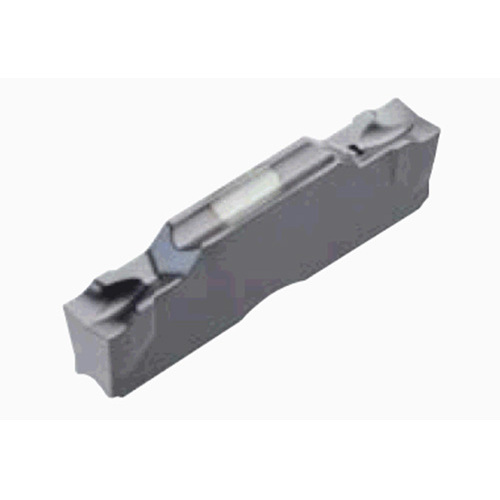

DGS3-020-6R AH6235
Parting Off Insert; 0.118″ CW × 0.787″ Length × 0.0079″ Corner Radius ; Carbide ; TiAlN ; AH6235
| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Insert Length (INSL) | 0.787″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 1.417″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH6235 | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Double-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.002 inch | Country of Origin | Japan |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0
Related Documentation
Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
