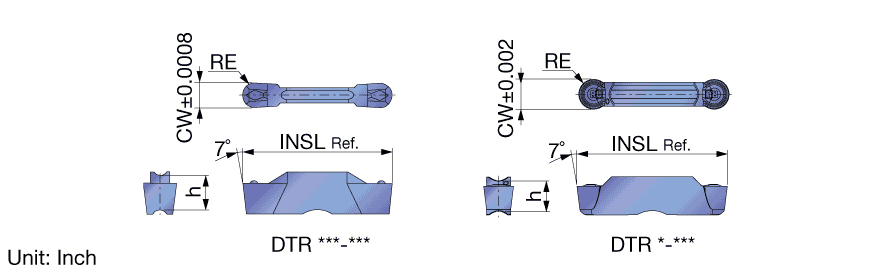

DTR600-300 AH8005
Grooving Insert; 0.236″ CW × 0.866″ Max Depth ; Carbide ; AH8005 ; AlTiN
| Cutting Width (CW) | 0.236″ | Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.1181″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.866″ | Number of Cutting Edges | 2 |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH8005 | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | |
Product Features

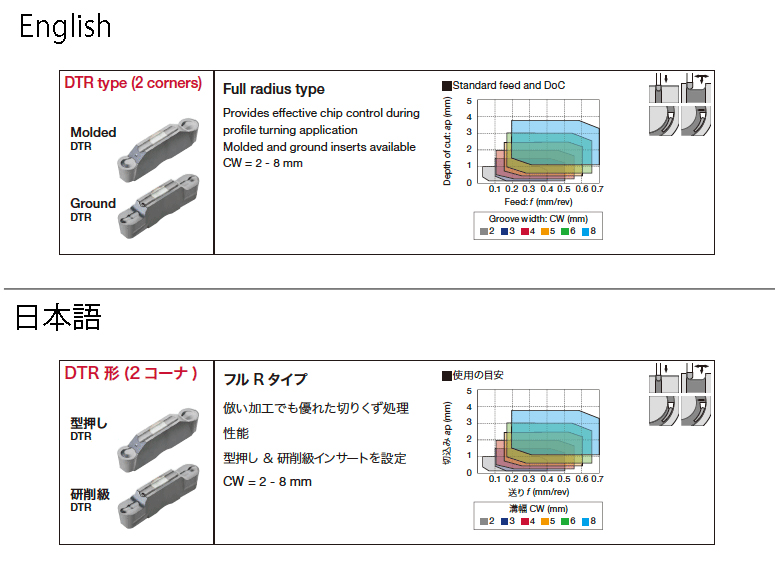

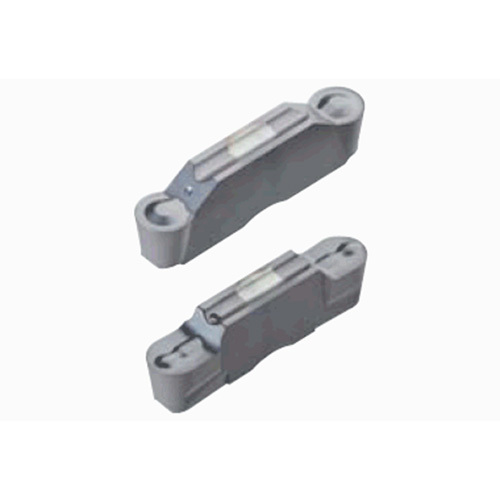

| Family Description | Full radius double-ended inserts for profiling & undercutting, tolerance of insert width +-0.0008 inch (only DTR3-,4-,5-,6- & 8-*** +-0.002 inch) | Country of Origin | Japan |
| Remarks | For "Standard cutting conditions", click on "More Info". |
