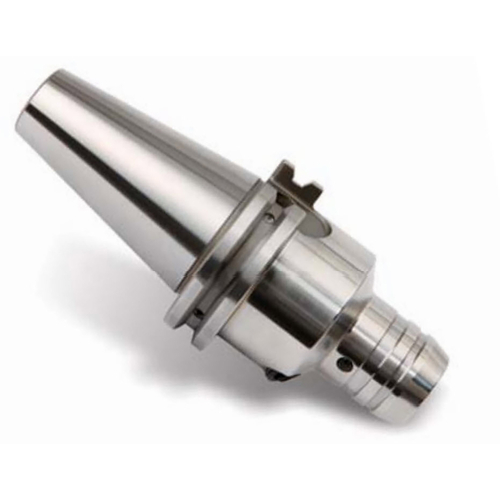

CAT40AD/B-HC32-80.5
Hydraulic Holder ; 32 mm Hole Dia. ; 25.5 mm Body Length ; 63 mm Body Dia. ; CAT40 Shank Size
| Body Length (LB) | 25.5 mm | Protruding Length (LPR) | 80.5 mm |
| Body Length_2 (LB_2) | 55 mm | Shank Size (SS) | CAT40 |
| Thread Designation Inside (THID) | M16x1.0 | Tool Type | ASME-BS.50-CAT |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 63 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 80 mm | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.7
Package Width
3.7
Package Height
6.42
Package Weight
0
