TXWX03M050SB22.0R08

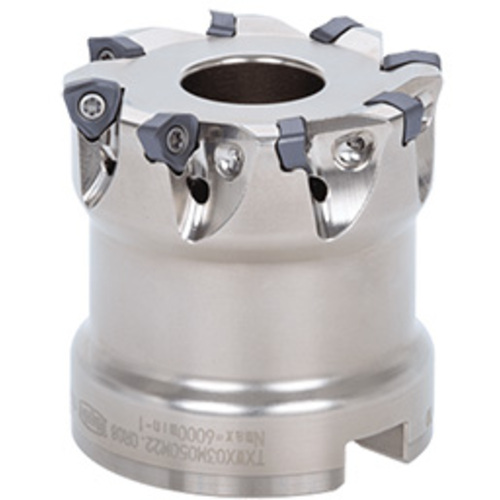

Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 1 mm LOC ; 8 Inserts

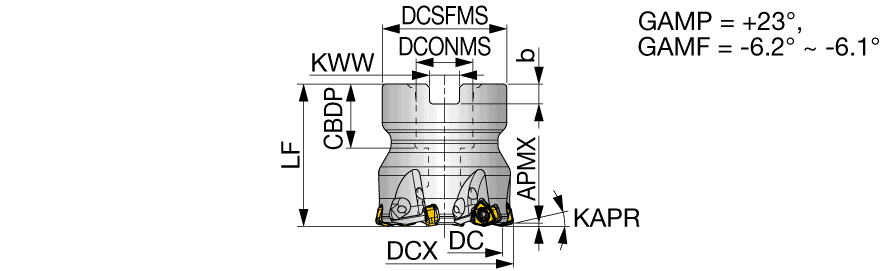

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | WXMU0303ZER-MM |
| Cutting Diameter (DC) | 42.7 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 50 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Fast Feed Face mill |
Product Features
| Family Description | High feed milling cutter for 6-corner double sided inserts | Country of Origin | Japan |
