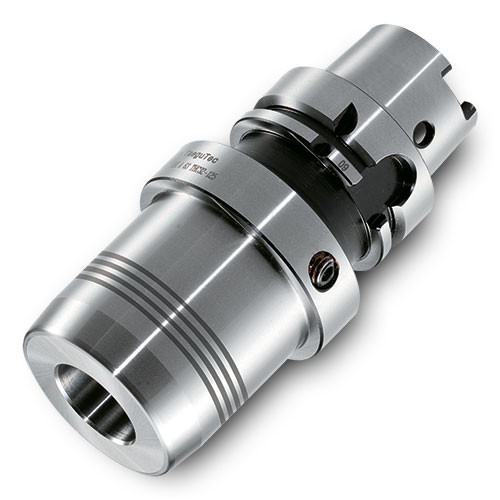

HSKA50HYDRO20X100
Hydraulic Holder ; 20 mm Hole Dia. ; 20 mm Shank Dia. ; 74 mm Body Length ; 38 mm Body Dia. ; 4.64″ OAL ; HSK Shank
| Connection Diameter Machine Side (DCONMS) | 20 mm | Overall Length (OAL) | 4.64″ |
| Body Length Maximum (LBX) | 74 mm | Shank Type | HSK |
| Body Length (LB) | 74 mm | Nose Diameter | 38 mm |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 38 mm | Nose Length | 1.5354″ |
| Body Diameter_2 (BD_2) | 42 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
Product Features
| Family Description | Note: Chucking forces will be reduced by 25% when optional reduction sleeves are used *See additional notes below | Country of Origin | Germany |
Shipping Info
Package Weight
2.385
