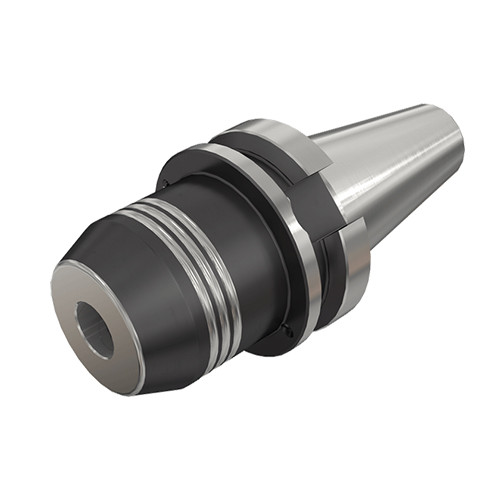

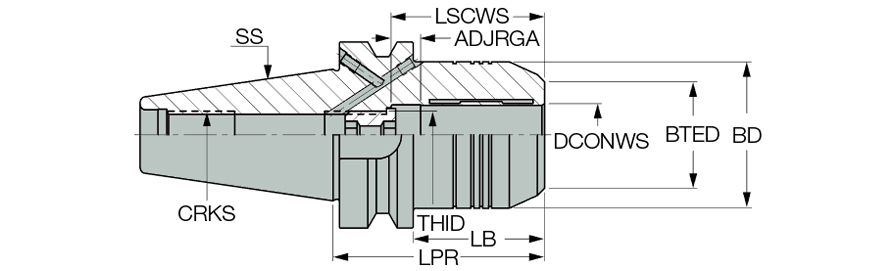

BT40 HYDRO 16X72.5 HD
Hydraulic Holder ; 16 mm Hole Dia. ; #63 Shank Dia. ; 45.5 mm Body Length ; 49.25 mm Body Dia. ; 40.0 Shank Size ; 4.64″ OAL ; HSK Shank
| Connection Diameter Machine Side (DCONMS) | #63 | Shank Type | HSK |
| Body Length Maximum (LBX) | 3.38″ | Shank Size (SS) | 40.0 |
| Body Length (LB) | 45.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Nose Length | 1.5354″ |
| Body Diameter (BD) | 49.25 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 72.5 mm | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | Heavy duty, short hydraulic chucks with BT form ADB shanks | Country of Origin | Germany |
Shipping Info
Package Weight
3.373
