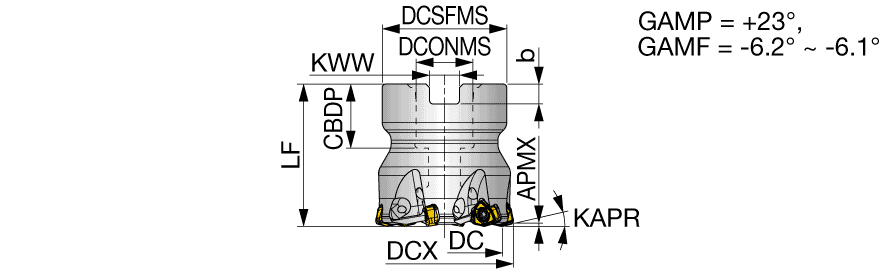

TXWX03U1.50SB0.50R05
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.575″ OAL × 0.039″ LOC ; 5 Inserts
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | WXMU0303ZER-MM |
| Cutting Diameter (DC) | 1.2165″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | High Feed Milling | |
| Depth of Cut Maximum (APMX) | 0.039″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Tool Type | Fast Feed Face mill |
Product Features
| Family Description | High feed milling cutter for 6-corner double sided inserts | Country of Origin | JAPAN |
