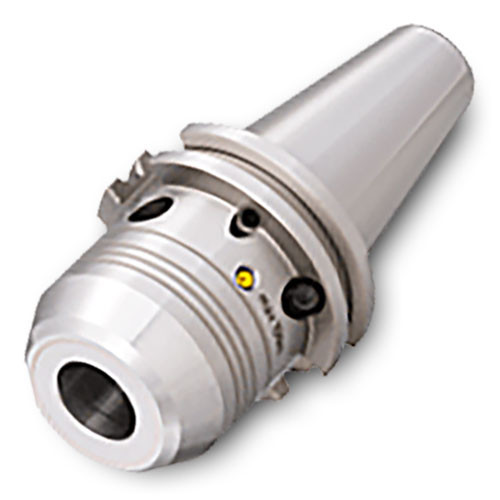

CAT40HYDRO1/4X2.677
Hydraulic Holder ; 1/4″ Hole Dia. ; 1/4″ Shank Dia. ; 1.299″ Body Length ; 0.906″ Body Dia. ; 4.64″ OAL ; HSK Shank

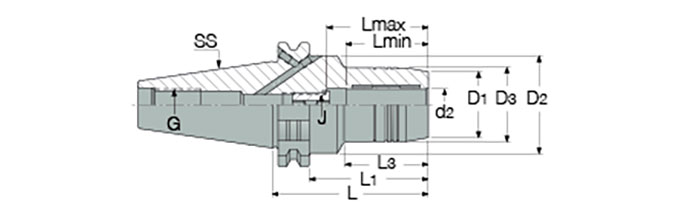

| Connection Diameter Machine Side (DCONMS) | 1/4″ | Overall Length (OAL) | 4.64″ |
| Body Length Maximum (LBX) | 1.927″ | Shank Type | HSK |
| Body Length (LB) | 1.299″ | Nose Diameter | 0.906″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 0.906″ | Nose Length | 1.5354″ |
| Body Diameter_2 (BD_2) | 1.023″ | Measurement Type | Inch |
| Protruding Length (LPR) | 2.677″ | Body Material | Steel |
Product Features
| Family Description | Recommended for chatter dampening when machining high temperature alloys such as titanium Chucking forces will be reduced by 25% when using sleeves *See Notes below | Country of Origin | Germany |
Shipping Info
Package Weight
2.509
