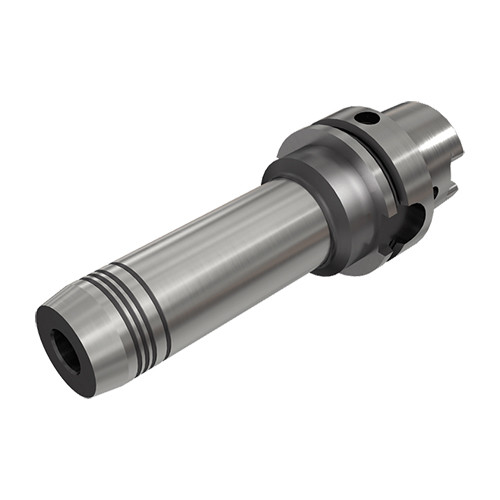

HSK A100 HYDRO 14X150
Hydraulic Holder ; 14 mm Hole Dia. ; #63 Shank Dia. ; 97 mm Body Length ; 34 mm Body Dia. ; 100 Shank Size ; 4.64″ OAL ; HSK Shank

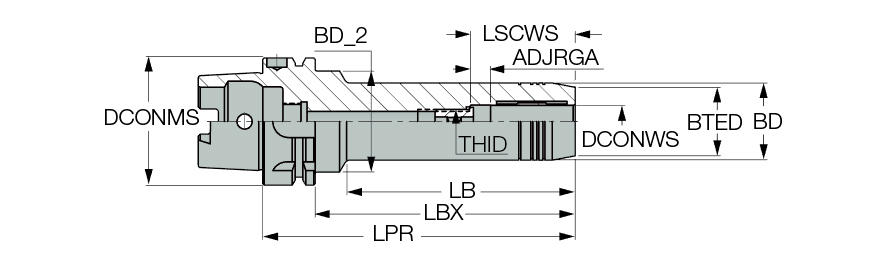

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Size (SS) | 100 |
| Body Length Maximum (LBX) | 3.38″ | Tool Type | HSK |
| Body Length (LB) | 97 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Nose Length | 1.5354″ |
| Body Diameter (BD) | 34 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 150 mm | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | HSK |
| Shank Type | HSK |
Product Features
| Family Description | Long projection hydraulic chucks with HSK DIN69893 form A tapered shanks. for Semi-Finish and finish applications | Country of Origin | Germany |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. A cooling tube must be used with coolant through HSK spindles (order separately). Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). |
Shipping Info
Package Weight
6.720
