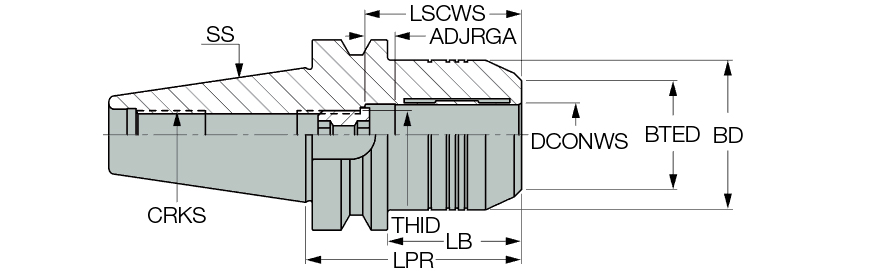

BT40 HYDRO 20X72.5
| Connection Diameter Machine Side (DCONMS) | #63 | Shank Type | HSK |
| Body Length Maximum (LBX) | 45.5 mm | Shank Size (SS) | 40 |
| Body Length (LB) | 45.5 mm | Application | | BT | Hydraulic Chucks | |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Tool Type | BT |
| Body Diameter (BD) | 49.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 72.5 mm | Nose Length | 1.5354″ |
| Overall Length (OAL) | 4.64″ | Measurement Type | Metric |
Product Features
| Family Description | Heavy duty, short hydraulic chucks with MAS-BT form AD shanks. Most recommended for chatter dampening especially when machining high temperature alloys like titanium. | Country of Origin | Israel |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. |
Shipping Info
Package Weight
3.285
