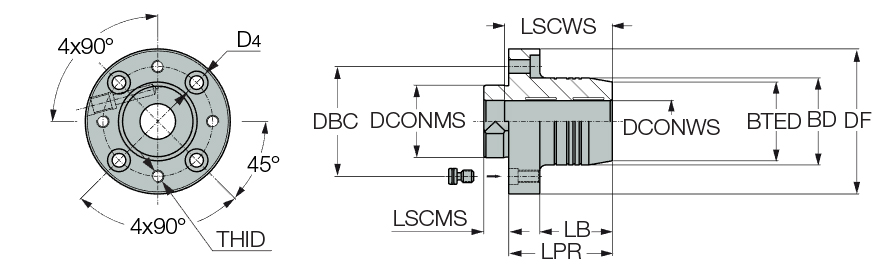

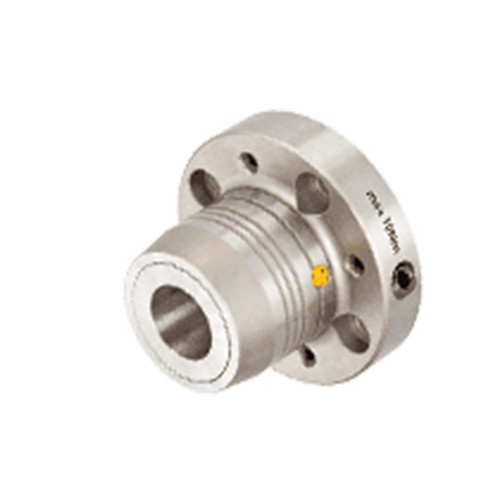

ADJ HYDRO 20 D70
Hydraulic Holder ; 20 mm Hole Dia. ; #63 Shank Dia. ; 35 mm Body Length ; 42 mm Body Dia. ; 4.64″ OAL ; HSK Shank
| Connection Diameter Machine Side (DCONMS) | #63 | Tool Type | ADJ (Adjustable Flanges) |
| Body Length Maximum (LBX) | 3.38″ | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 50 mm | Nose Length | 1.5354″ |
| Overall Length (OAL) | 4.64″ | Measurement Type | Metric |
| Shank Type | HSK | Body Material | Steel |
Product Features
| Family Description | Radial and angular adjustable hydraulic flanges, for Semi-Finish and finish applications | Country of Origin | Germany |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Reduction sleeves are available for 3 to 16 mm bore diameters (order separately). |
Shipping Info
Package Weight
1.640
