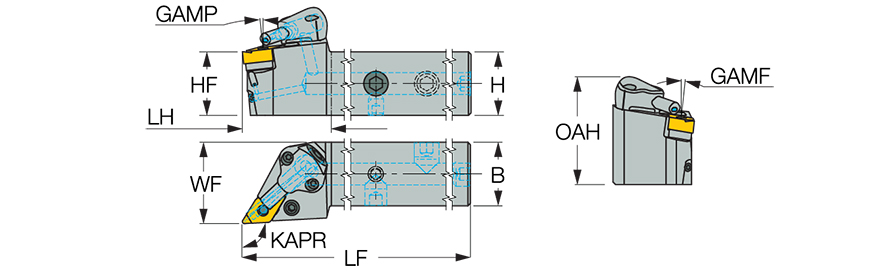

| Shank Height (H) | 20 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 105 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

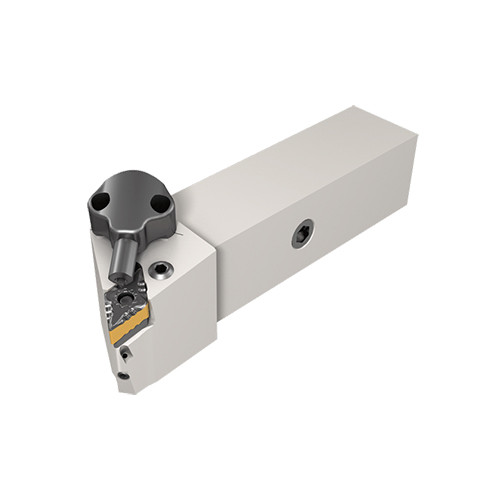

| Family Description | Lever Lock Tools with Channels for High-Pressure Coolant Carrying 55° Negative Rhombic Inserts | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
0.877
