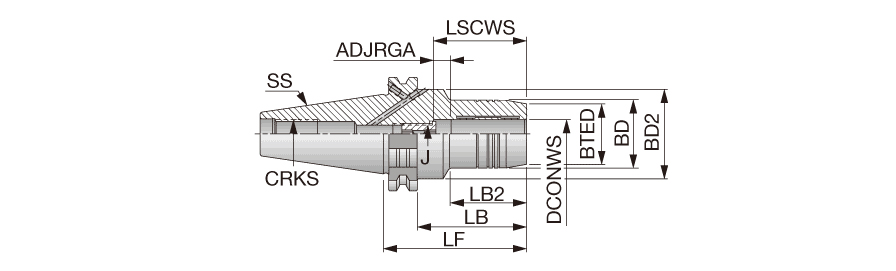

DIN6987150HYDRO32X81
Hydraulic Holder ; 50 Shank Dia. ; 62 mm Body Length ; 72 mm Body Dia. ; 50 mm Shank Size ; 81 mm OAL ; Cylindrical Shank
| Connection Diameter Machine Side (DCONMS) | 50 | Shank Type | Cylindrical |
| Body Length Maximum (LBX) | 3.38″ | Shank Size (SS) | 50 mm |
| Body Length (LB) | 62 mm | Application | DIN69871 Interface | TungHydro Hydraulic Chucks |
| Body Length_2 (LB_2) | 0 mm | Tool Type | DIN 69871 |
| Thread Designation Inside (THID) | M16x1 | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 72 mm | Nose Length | 1.5354″ |
| Body Diameter_2 (BD_2) | 0 mm | Measurement Type | Metric |
| Overall Length (OAL) | 81 mm | Body Taper End Diameter (BTED) | 56 mm |
| Clamping Length Workpiece Side (LSCWS) | 64 mm |
Product Features
| Family Description | TungHydro hydaulic endmill chuck holders with DIN69871 shank | Country of Origin | Germany |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordered separately). |
