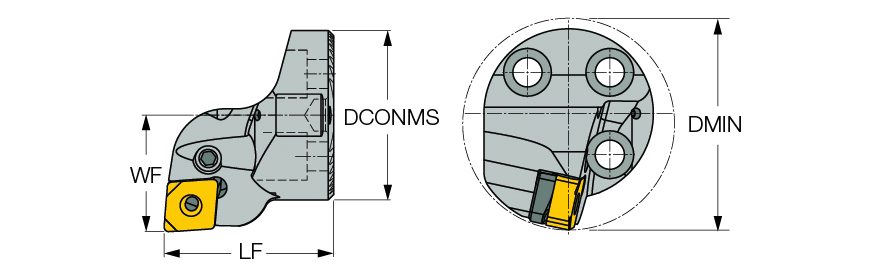

| Overall Length (OAL) | 1.102″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 1.102″ | Application | | Int. 80° Diamond 95° Approach | |
| Functional Width (WF) | 0.669″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Weight of Item (WT) | 0 lbs |
| Minimum Bore Diameter (DMIN) | 1.26″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CNMG 09... | Style | SCLCL08-3A |
Product Features

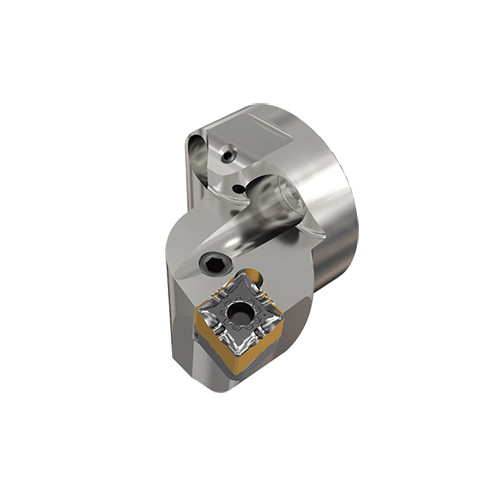

| Family Description | .Interchangeable boring heads Carrying 80° rhombic inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.154
