C6ADJNL45065-15
Turning Toolholder; 65 mm OAL × 1/2″ Shank Height × 1/2″ Shank Width × 63 Shank Dia. ; Left Hand ; Steel

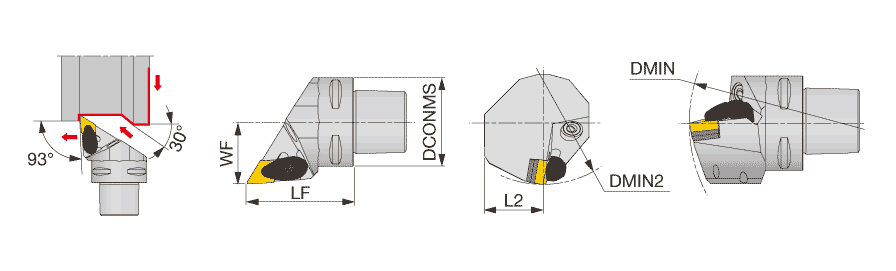

| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 65 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Tapered Shank Turning Tools |
| Functional Width (WF) | 15.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 | Style | SCLCL08-3A |
| Inscribed Circle Diameter (IC) | 15.5 mm |
Product Features
| Family Description | "TungCap" TurningA Double-clamp toolholder with 93deg approach angle, for negative 55deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N": Capable for 7Mpa coolant pressure. |
Shipping Info
Package Weight
2.975
