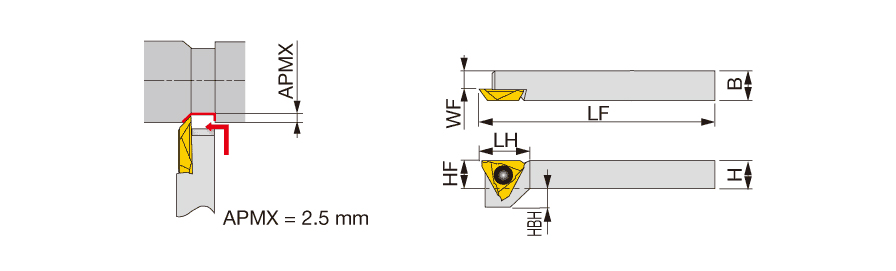

JSTBL1616K3
Turning Toolholder; 125 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 125 mm LH ; Left Hand ; Steel
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Overall Length (OAL) | 125 mm | Tool Type | Square Shank Turning Tools |
| Functional Length (LF) | 4″ | Measurement Type | Metric |
| Head Length (LH) | 125 mm | Style | SCLCL08-3A |
| Functional Width (WF) | 5/8″ | Insert Style | 125mm |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | "J-series" No-offset Screw-on toolholder for back turning with JTBR/L3** inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.009
