JSVL2PR1616K08

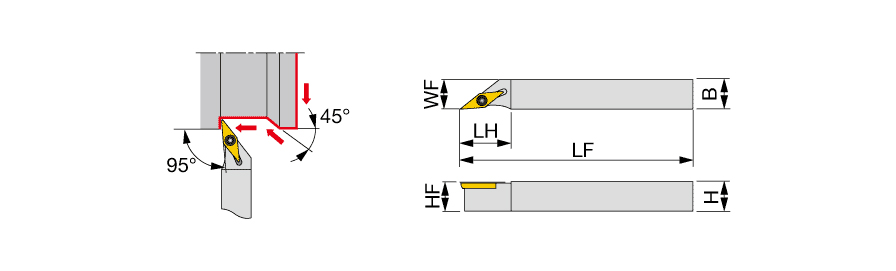

Turning Toolholder; 125 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 125 mm LH ; Right Hand ; Steel
| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Overall Length (OAL) | 125 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 125 mm | Measurement Type | Metric |
| Functional Width (WF) | 8.3 mm | Style | SCLCL08-3A |
| Inscribed Circle Diameter (IC) | 8.3 mm | Insert Style | 125mm |
Product Features
| Family Description | "J-series" No-offset Screw-on toolholder with 95 deg apprch angle, for positive 35 deg rhombic inserts | Country of Origin | Japan |
Shipping Info
Package Weight
0.009
