JTTACR1212M11

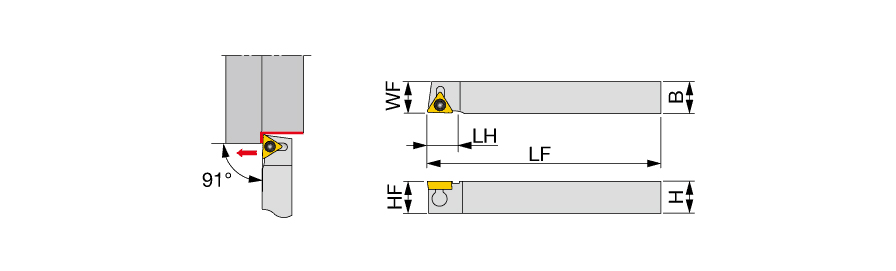

Turning Toolholder; 150 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 150 mm LH ; Right Hand ; Steel
| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 150 mm | Measurement Type | Metric |
| Functional Width (WF) | 11 mm | Style | SCLCL08-3A |
| Inscribed Circle Diameter (IC) | 11 mm | Insert Style | 150mm |
Product Features
| Family Description | No-offset Back clamp toolholder with 91deg approach angle, for positive triangle inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.419
