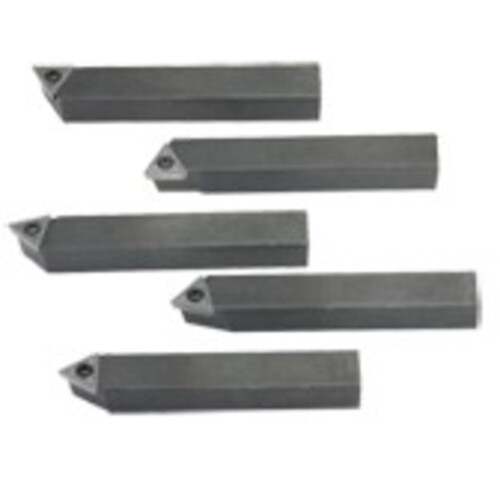

Style E6 3/8 × 3/8″ SH - Neutral - Indexable Tool Bit
| Shank Height (H) | 3/8″ | Master Insert Identification (MIID) | TT221 |
| Shank Width (B) | 3/8″ | Tool Type | Turning Toolholders-Standard |
| Overall Length (OAL) | 2-1/2″ | Style | E6 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ × 3/8″ | Insert Style | 2-1/2 |
| Inscribed Circle Diameter (IC) | 1/4″ |
Product Features
| Remarks | •Indexable Carbide Turning Tools & Accessories •All Supplied with C5 Carbide with .015 Radius •EFFICIENCY:A versatile and economical way to replace carbide tipped tool bits. Each tool cuts right, left, or plunges. Positive rake cutting and built-in chip breaker groove. Inserts available with 2 different radii (.015 standard / .032 optional). STYLE E Neutral Threading Tool 60° included angle; used for U.S. Standard universal threading. V-grooving, chamfering, turning, boring and facing. | Country of Origin | USA |
Shipping Info
Package Length
4.75000
Package Width
.84000
Package Height
.84000
Package Weight
0.1
