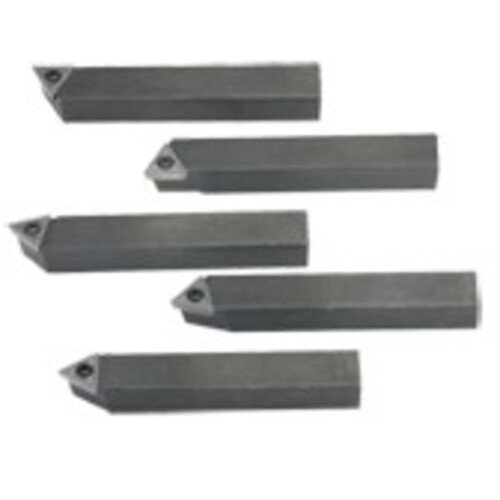

Style E16 1 × 1″ SH - Neutral - Indexable Tool Bit
| Shank Height (H) | 1″ | Inscribed Circle Diameter (IC) | 1/2″ |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | TT431 |
| Overall Length (OAL) | 6″ | Tool Type | Turning Toolholders-Standard |
| Connection Diameter Machine Side (DCONMS) | 1″ × 1″ | Insert Style | 6 |
Product Features
| Remarks | •Indexable Carbide Turning Tools & Accessories •All Supplied with C5 Carbide with .015 Radius •EFFICIENCY:A versatile and economical way to replace carbide tipped tool bits. Each tool cuts right, left, or plunges. Positive rake cutting and built-in chip breaker groove. Inserts available with 2 different radii (.015 standard / .032 optional). STYLE E Neutral Threading Tool 60° included angle; used for U.S. Standard universal threading. V-grooving, chamfering, turning, boring and facing. | Country of Origin | USA |
Shipping Info
Package Length
7.50000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.5
