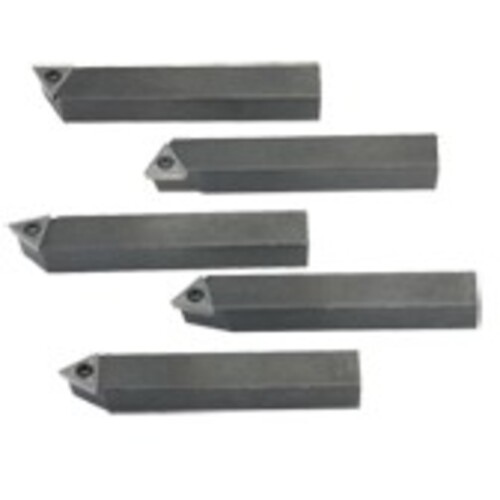

Style 5/8 × 5/8″ SH - RH - Indexable Tool Bit
Turning Toolholder; 4″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 5/8″ 5/8″ Shank Dia.
| Shank Height (H) | 5/8″ | Inscribed Circle Diameter (IC) | 3/8″ |
| Shank Width (B) | 5/8″ | Master Insert Identification (MIID) | TT321 |
| Overall Length (OAL) | 4″ | Tool Type | Turning Toolholders-Standard |
| Connection Diameter Machine Side (DCONMS) | 5/8″ × 5/8″ | Insert Style | 4 |
Product Features
| Remarks | •Indexable Carbide Turning Tools & Accessories •All Supplied with C5 Carbide with .015 Radius •EFFICIENCY:A versatile and economical way to replace carbide tipped tool bits. Each tool cuts right, left, or plunges. Positive rake cutting and built-in chip breaker groove. Inserts available with 2 different radii (.015 standard / .032 optional). STYLE AR Right Hand suitable for machining to a 90° square shoulder. | Country of Origin | USA |
Shipping Info
Package Length
6.00000
Package Width
1.26000
Package Height
1.26000
Package Weight
0.45
