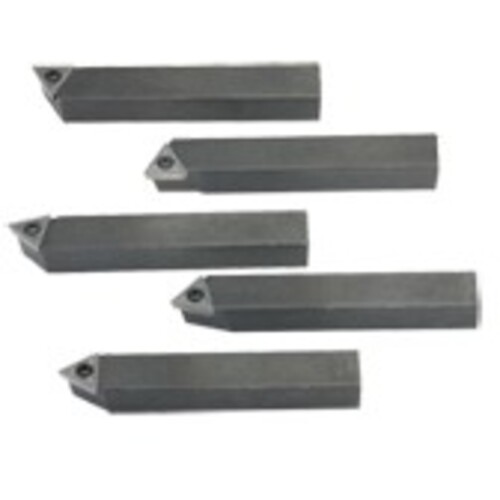

AR-6 INDEXABLE LATHE TURN
Turning Toolholder; 2-1/2″ OAL × 3/8″ Shank Height × 3/8″ Shank Width × 3/8″ 3/8″ Shank Dia.
| Shank Height (H) | 3/8″ | Master Insert Identification (MIID) | TT221 |
| Shank Width (B) | 3/8″ | Tool Type | Turning Toolholders-Standard |
| Overall Length (OAL) | 2-1/2″ | Style | AR6 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ × 3/8″ | Insert Style | 2-1/2 |
| Inscribed Circle Diameter (IC) | 1/4″ |
Product Features
| Remarks | •Indexable Carbide Turning Tools & Accessories •All Supplied with C5 Carbide with .015 Radius •EFFICIENCY:A versatile and economical way to replace carbide tipped tool bits. Each tool cuts right, left, or plunges. Positive rake cutting and built-in chip breaker groove. Inserts available with 2 different radii (.015 standard / .032 optional). STYLE AR Right Hand suitable for machining to a 90° square shoulder. | Country of Origin | USA |
Shipping Info
Package Length
4.50000
Package Width
.86000
Package Height
.86000
Package Weight
0.15
