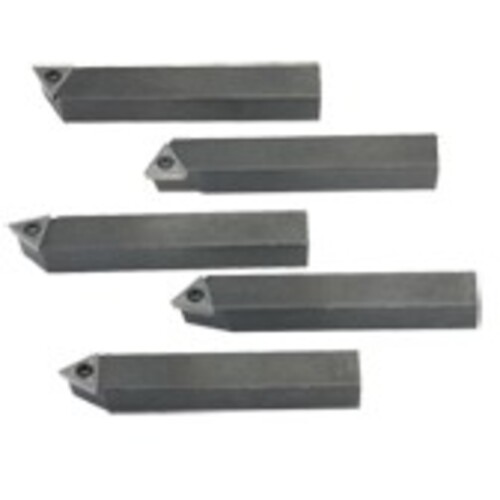

Style 3/4 × 3/4″ SH - LH - Indexable Tool Bit
| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | TT321 |
| Shank Width (B) | 3/4″ | Tool Type | Turning Toolholders-Standard |
| Overall Length (OAL) | 4-1/2″ | Style | AL12 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ × 3/4″ | Insert Style | 4-1/2 |
| Inscribed Circle Diameter (IC) | 3/8″ |
Product Features
| Remarks | •Indexable Carbide Turning Tools & Accessories •All Supplied with C5 Carbide with .015 Radius •EFFICIENCY:A versatile and economical way to replace carbide tipped tool bits. Each tool cuts right, left, or plunges. Positive rake cutting and built-in chip breaker groove. Inserts available with 2 different radii (.015 standard / .032 optional). STYLE AL Left Hand suitable for facing to a square shoulder. | Country of Origin | USA |
Shipping Info
Package Length
5.50000
Package Width
1.24300
Package Height
1.24300
Package Weight
0.726
