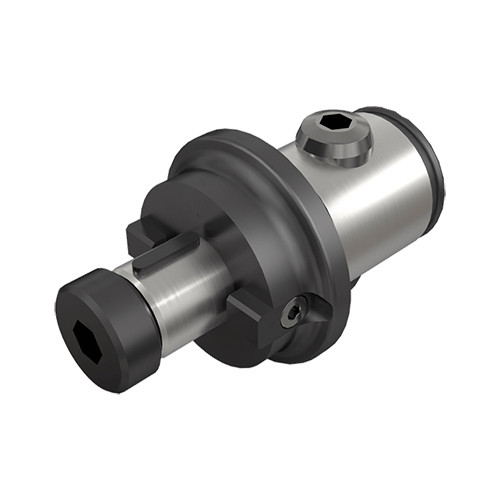

SMH MB50-3/4
Shell Mill holders with MB modular boring system connection

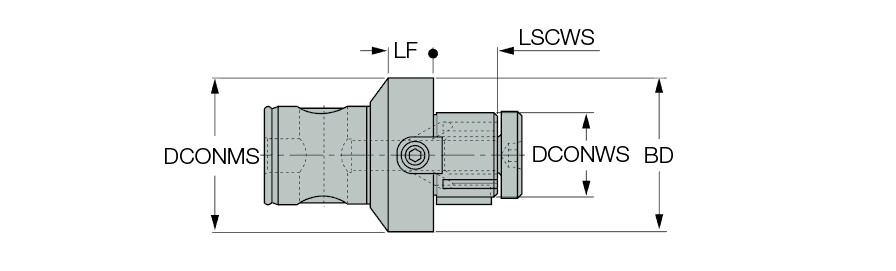

| Overall Length (OAL) | 2.864″ | Body Material | Steel |
| Body Diameter (BD) | 1.57″ | Tool Type | MB General Tools Holders |
| Connection Diameter Machine Side (DCONMS) | 1.969″ | Nose Diameter | 3/4″ |
| Shank Size (SS) | MB50 | Measurement Type | Inch |
| Shank Size Machine Side | MB50 | Grade | 4550211 |
Product Features
| Family Description | Shell Mill holders with MB modular boring system connection | Country of Origin | Italy |
| Remarks | When mounting slitting cutters, remove the drive dogs and use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.179
