ADBH 30XD16

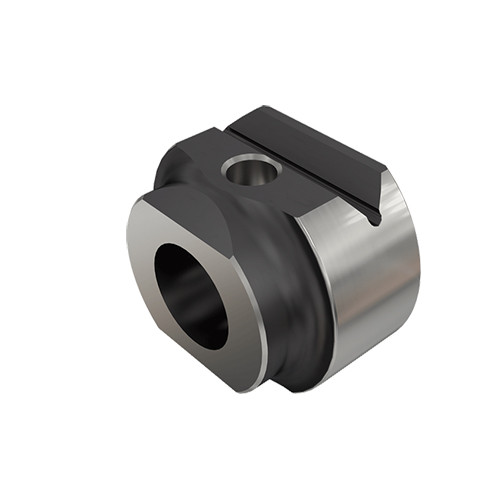

Sleeve for MB modular fine boring holders.

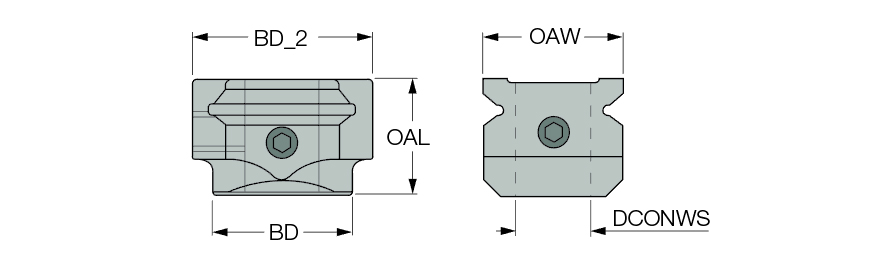

| Connection Size (CSI) | 30 | Body Material | Steel |
| Overall Length (OAL) | 0.984″ | Tool Type | MB (modular boring connection) |
| Body Diameter (BD) | 1.181″ | Nose Diameter | 3/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.63″ | Head Diameter | 1.535″ |
| Shank Width (B) | 1.201″ | Measurement Type | Inch |
| Shank Size Machine Side | 3/4″ | Grade | 4550280 |
Product Features
| Family Description | Sleeve for MB modular fine boring holders. | Country of Origin | Italy |
Shipping Info
LocalField10
0
Package Weight
0.33
Related Items
