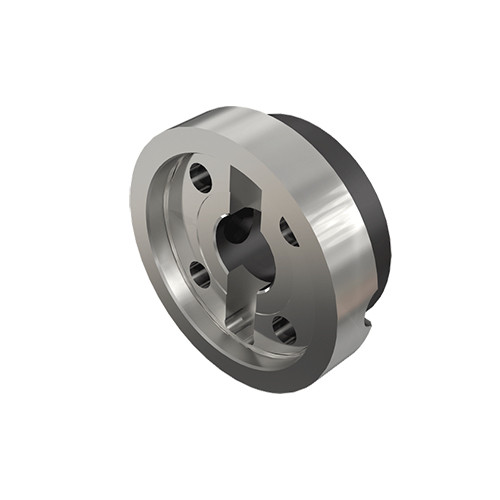

DIN2079 MB63 50

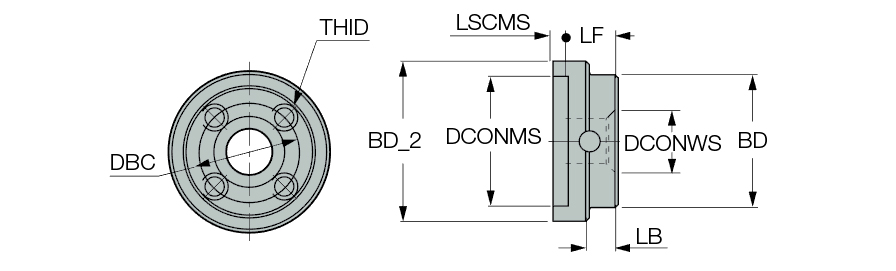

| Connection Size (CSI) | MB63 | Body Material | Steel |
| Overall Length (OAL) | 1.772″ | Tool Type | MB (modular boring connection) |
| Body Diameter (BD) | 5.315″ | Nose Diameter | 3/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 2.4803″ | Head Diameter | 5.906″ |
| Connection Diameter Machine Side (DCONMS) | 5.062″ | Measurement Type | Inch |
| Body Length (LB) | 1.22″ | Holder Length | 1.772″ |
| Shank Size Machine Side | 3/4″ | Grade | 4550699 |
Product Features
| Family Description | Connecting plates enable the use of ITSBORE components with "MB" connection by using any standard adapter with four screws. It is affixed directly on any machine spindle with a DIN 2079 interface. | Country of Origin | Italy |
| Remarks | Standard connection plate that can be assembled easily on most CNC spindle machines with a DIN2079 interface. This connection plate enables the use of ITS BORE components with the MB connection by using any standard adapter with four screws. It is affixed to the machine spindle. |
Shipping Info
Package Weight
10.141
