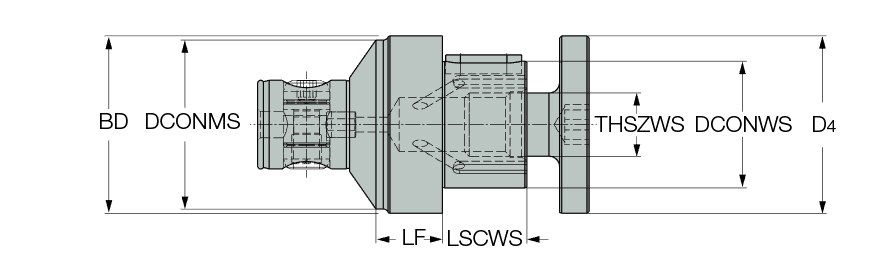

STUB MB80-60*
| Overall Length (OAL) | 31.5 mm | Body Material | Steel |
| Body Diameter (BD) | 84 mm | Tool Type | MB General Tools Holders |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Nose Diameter | 3/4″ |
| Shank Size (SS) | MB80 | Measurement Type | Metric |
| Shank Size Machine Side | 3/4″ | Holder Length | 31.5mm |
| Coolant Supply Property (CSP) | Through Hole | Grade | 4559655 |
Product Features

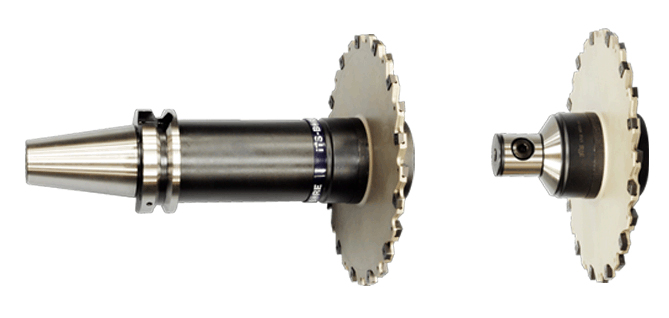

| Family Description | STUB 60 holder with an ITSBORE MB80 connection for disk type milling cutters. | Country of Origin | Israel |
| Remarks | When mounting slitting cutters, use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
7.937
